Membrane switch and panel
Product introduction

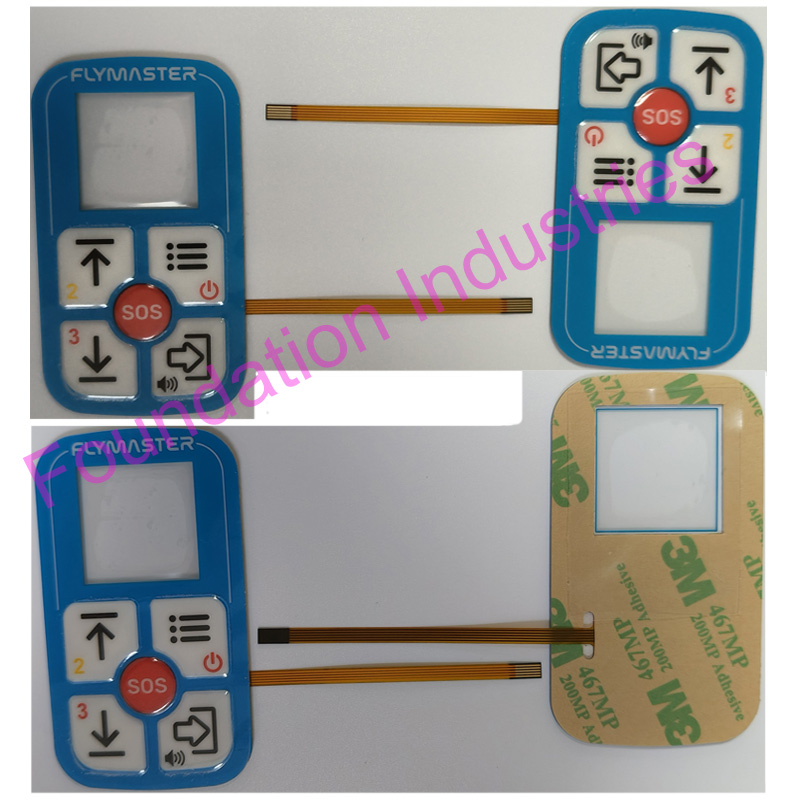

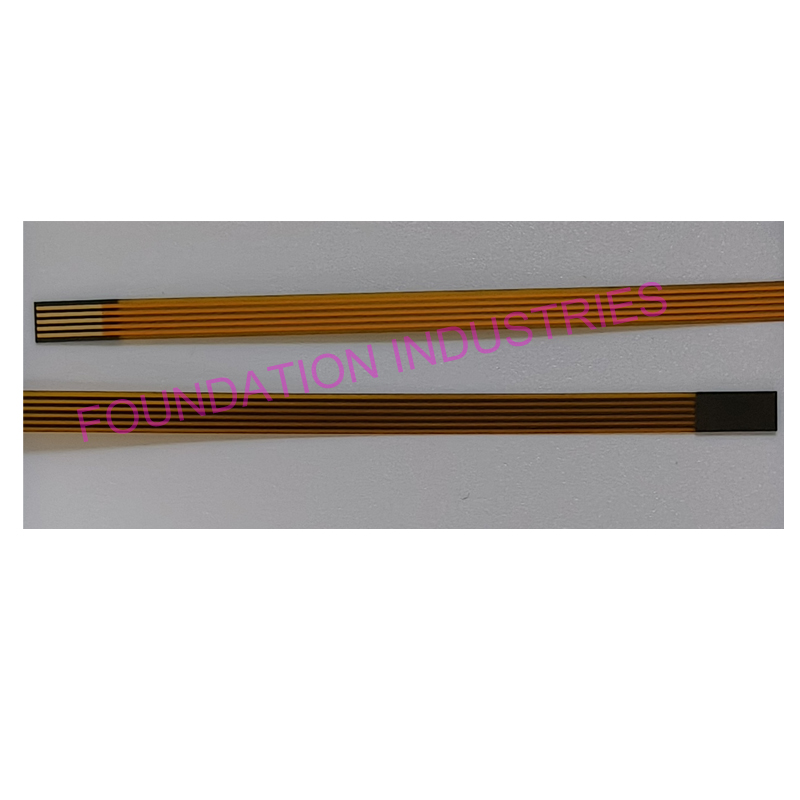

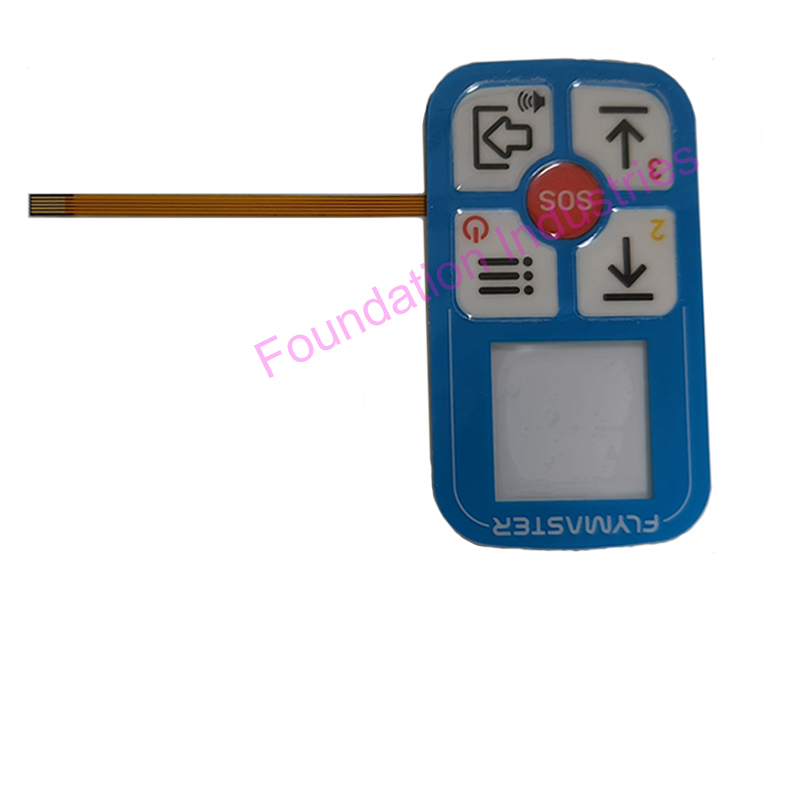

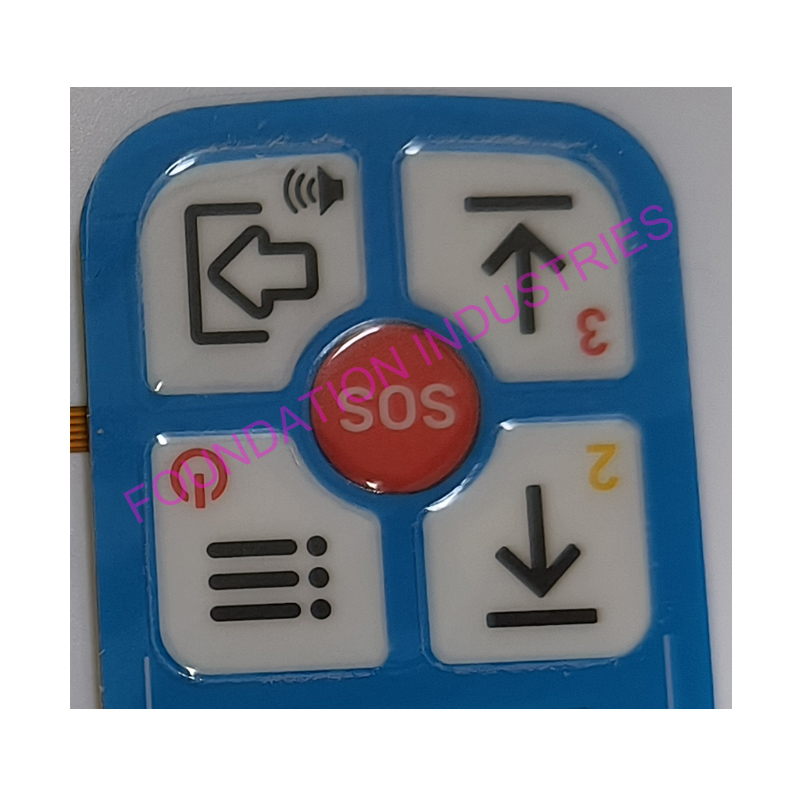

This is a Membrane switch and panel with a membrane overlay, transparent window, embossing raised keys, and FPC circuit. The material of the grafik panel is Autotex's F150, which is a scratch-resistant, frosted transparent material. Blue, white, red, and black colors were silkscreen printed on the back of the grafik overlay, and the window position is silkscreened with transparent ink to make the frosted window smooth. This custom membrane switches is tactile, with assembled metal shrapnel in the wiring above the key position, and has a lifespan of up to 1 million cycles. The key position has a raised design, creating a three-dimensional visual effect and making it easy to operate. The FPC flex circuits are build with copper foil, which has the advantages of low resistance, high temperature resistance, and good stability. The FPC tail ends is gold-plated, ensuring a secure connection with the ZIF connector.
Product features
1. Metal dome switch have a lifetime of more than 1 million cycles.

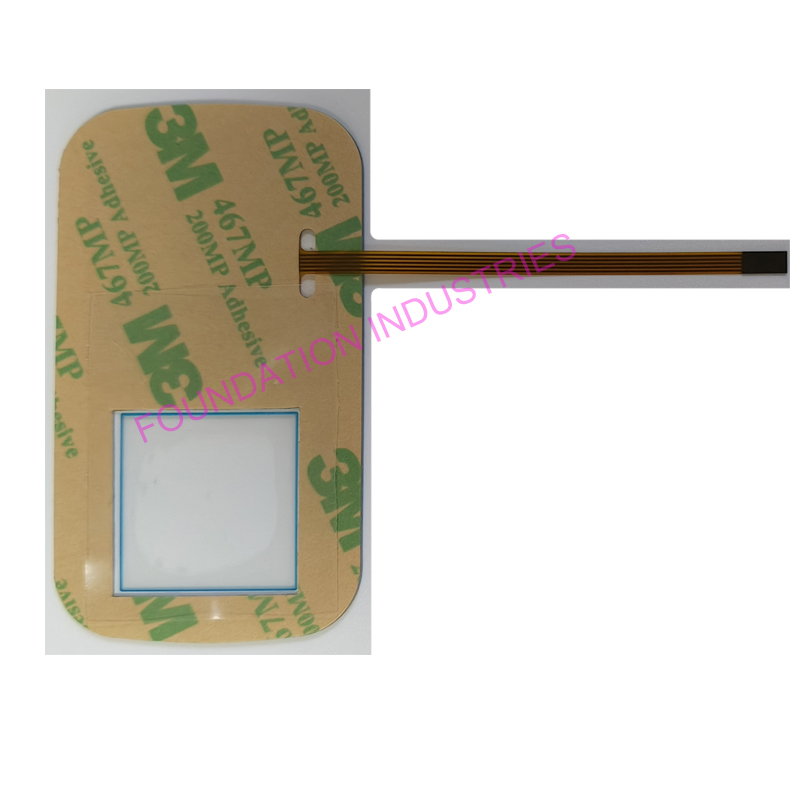

2. membrane switch keypad is lightweight and flexible, with rear adhesive backing on the bottom, making it easy to assemble and use.
3. The membrane panel of the keypad switch is made of scratch-resistant material, and all the colors of the product are printed on the back of the overlay panel to maintain a vibrant look for an extended period.
4. The membranschalter can be customized, allowing for changes to the shape, color, and thickness of the product as desired.
5. The membrane panel switch is easy to clean and environmentally friendly.
Product parameters
| Size: | 150.0 X 50.0 X 0.7mm |
| Colors: | 4 colors |
| Loop Resistance: | Less than 10Ohms |
| Insulation Resistance: | More than 20K Ohms |
| Max Current: | 1A |
| Tail Pitch: | 0.3~2.54mm |
| Keys Life time: | More than 1.000.000 Cycles |
| Keys Operation Force: | More than 200g |
| Construction: | 6 layers |
| Environment: | IP67, -40℃~85℃ |
| Keys embossing height: | 0.2~0.5mm |
Application of the product
membrane switch keypad are a flexible, convenient, and reliable switching element that plays an important role in various electronic devices and systems. They provide users with a more convenient and efficient operating experience. Membrane switch are commonly used in household appliances, industrial control equipment, medical instruments, automotive electronics, communication equipment, and the military industry.
Foundation Industries is a company specializing in design for over 17 years. We have mastered the industry's leading technologies, techniques, and advanced automated production lines to provide you with better service. We are committed to offering customers high-quality, innovative, and custom membrane switches and custom graphic overlays solutions. As an industry leader, Foundation Industries has the experience and technical expertise to provide customers with the most competitive products and services.
We are excited to work with you.
